Cisco Catalyst 2960-X Series Switches
Product Overview
Cisco® Catalyst® 2960-X Series Switches are fixed-configuration, stackable Gigabit Ethernet switches that provide enterprise-class access for campus and branch applications (Figure 1). Designed for operational simplicity to lower total cost of ownership, they enable scalable, secure and energy-efficient business operations with intelligent services and a range of advanced Cisco IOS® Software features.
Product Highlights
Cisco Catalyst 2960-X switches feature:
● 24 or 48 Gigabit Ethernet ports with line-rate forwarding performance
● Gigabit Small Form-Factor Pluggable (SFP) or 10G SFP+ uplinks
● FlexStack Plus for stacking of up to 8 switches with 80 Gbps of stack throughput (optional)
● Power over Ethernet Plus (PoE+) support with up to 740W of PoE budget
● 24-port PoE fanless switch for deployment outside the wiring closet
● Reduced power consumption and advanced energy management features
● USB and Ethernet management interfaces for simplified operations
● Application visibility and capacity planning with integrated NetFlow-Lite
● LAN Base or LAN Lite Cisco IOS® software features
● Enhanced limited lifetime warranty (E-LLW) offering next-business-day hardware replacement
Cisco Catalyst 2960-XR models also offer:
● Power resiliency with optional dual field-replaceable power supplies
● IP Lite Cisco IOS® software with dynamic routing and Layer 3 features

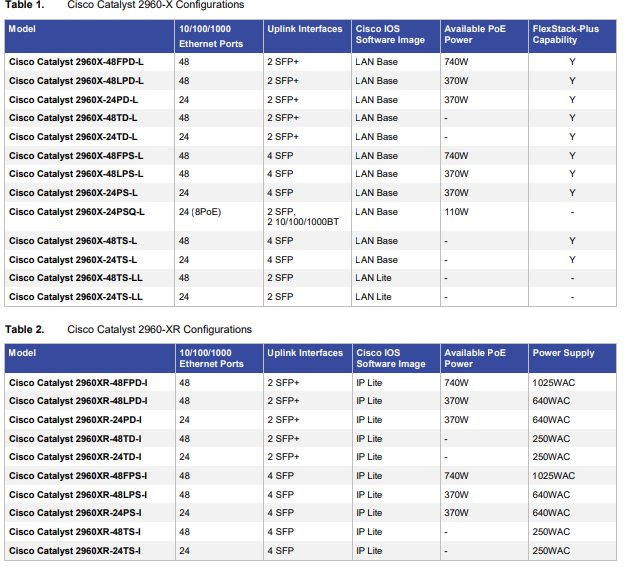

Switch Models and Configurations
Catalyst 2960-X switches include a single fixed power supply and are available with either the Cisco IOS LAN Base or LAN Lite feature set. Catalyst 2960-XR switch models include a field-replaceable modular power supply and can accommodate a second power supply. Catalyst 2960-XR is available only with the Cisco IOS IP Lite feature set.
Cisco Catalyst 2960-XR IP-Lite High-Performance Routing
The Cisco hardware routing architecture delivers extremely high-performance IP routing in the Cisco Catalyst 2960-XR IP-Lite Switches:
● IP unicast routing protocols (Static, Routing Information Protocol Version 1 [RIPv1], RIPv2, RIPng, and EIGRP-Stub) are supported for network routing applications.
● Advanced IP unicast routing protocols (OSPF for Routed Access) are supported for load balancing and constructing scalable LANs. IPv6 routing (OSPFv3) is supported in hardware for maximum performance.
● EIGRPv3-Stub and PIMv6-Stub are supported as a part of the IPv6 routing suite. ● Equal-cost routing facilitates Layer 3 load balancing and redundancy across the stack.
● Policy-based routing (PBR) allows superior control by facilitating flow redirection regardless of the routing protocol configured (for both IPv4 and IPv6).
● Hot Standby Routing Protocol (HSRP) and Virtual Router Redundancy Protocol (VRRP) provides dynamic load balancing and failover for routed links.
● Protocol Independent Multicast (PIM) for IP multicast is supported, including PIM sparse mode (PIM-SM), PIM dense mode (PIM-DM), PIM sparse-dense mode and Source Specific Multicast (SSM).
Network Security
The Cisco Catalyst 2960-X Series Switches provide a range of security features to limit access to the network and mitigate threats, including:
● MAC-based VLAN assignment enables different users to authenticate on different VLANs. This feature enables each user to have a different data VLAN on the same interface.
● Cisco TrustSec uses SXP to simplify security and policy enforcement throughout the network. For more information about Cisco TrustSec security solutions, visit cisco.com/go/TrustSec.
● Comprehensive 802.1X Features to control access to the network, including Flexible Authentication, 802.1x Monitor Mode, and RADIUS Change of Authorization.
● IPv6 First-Hop Security enhances Layer-2 and Layer-3 network access from proliferating IPv6 devices especially BYOD devices. It protects against rogue router advertisements, address spoofing, fake DHCP replies and other risks introduced by IPv6 technology.
● Device Sensor and Device Classifier enable seamless versatile device profiles including BYOD devices. They also enable Cisco Identity Services Engine (ISE) to provision identity based security policies. This feature is available on both the 2960-X and the 2960-XR product families.
● Cisco Trust Anchor Technology enables easy distribution of a single universal image for all models of Catalyst 2960-X by verifying the authenticity of IOS images. This technology allows the switch to perform IOS integrity checks at boot-up by verifying the signature, verifying the Trusted Asset under Management and authenticating the license.
● Cisco Threat Defense features including Port Security, Dynamic ARP Inspection, and IP Source Guard. © 2014 Cisco and/or its affiliates. All rights reserved. This document is Cisco Public Information. Page 4 of 26
● Private VLANs restrict traffic between hosts in a common segment by segregating traffic at Layer 2, turning a broadcast segment into a nonbroadcast multi access like segment. This feature is available in IP-Lite feature set only. ◦ Private VLAN Edge provides security and isolation between switch ports, which helps ensure that users cannot snoop on other users’ traffic.
● Unicast Reverse Path Forwarding (uRPF) feature helps mitigate problems caused by the introduction of malformed or forged (spoofed) IP source address into a network by discarding IP packets that lack a verifiable IP source address. This feature is available in IP-Lite feature set only.
● Multidomain Authentication allows an IP phone and a PC to authenticate on the same switch port while placing them on appropriate voice and data VLAN.
● Access Control Lists (ACLs) for IPv6 and IPv4 for security and QoS ACEs. ◦ VLAN ACLs on all VLANs prevent unauthorized data flows from being bridged within VLANs. ◦ Router ACLs define security policies on routed interfaces for control-plane and data-plane traffic. IPv6 ACLs can be applied to filter IPv6 traffic. ◦ Port-based ACLs for Layer 2 interfaces allow security policies to be applied on individual switch ports.
● Secure Shell (SSH) Protocol, Kerberos, and Simple Network Management Protocol Version 3 (SNMPv3) provide network security by encrypting administrator traffic during Telnet and SNMP sessions. SSH Protocol, Kerberos, and the cryptographic version of SNMPv3 require a special cryptographic software image because of U.S. export restrictions.
● Switched Port Analyzer (SPAN), with bidirectional data support, allows Cisco Intrusion Detection System (IDS) to take action when an intruder is detected.
● TACACS+ and RADIUS authentication facilitates centralized control of the switch and restricts unauthorized users from altering the configuration.
● MAC Address Notification allows administrators to be notified of users added to or removed from the network.
● Multilevel security on console access prevents unauthorized users from altering the switch configuration.
● Bridge protocol data unit (BPDU) Guard shuts down Spanning Tree Port Fast-enabled interfaces when BPDUs are received to avoid accidental topology loops.
● Spanning Tree Root Guard (STRG) prevents edge devices not in the network administrator’s control from becoming Spanning Tree Protocol root nodes.
● IGMP filtering provides multicast authentication by filtering out nonsubscribers and limits the number of concurrent multicast streams available per port.
● Dynamic VLAN assignment is supported through implementation of VLAN Membership Policy Server client capability to provide flexibility in assigning ports to VLANs. Dynamic VLAN facilitates the fast assignment of IP addresses.
