Specifications
|
Item |
Specifications |
|
Product compatibility |
Cisco Nexus 7009, 7010, 7018 Switches |
|
Software compatibility |
Cisco NX-OS Software Release 4.0 or later (minimum) |
|
Cards, ports and slots |
Two supervisor modules required per system for high availability |
|

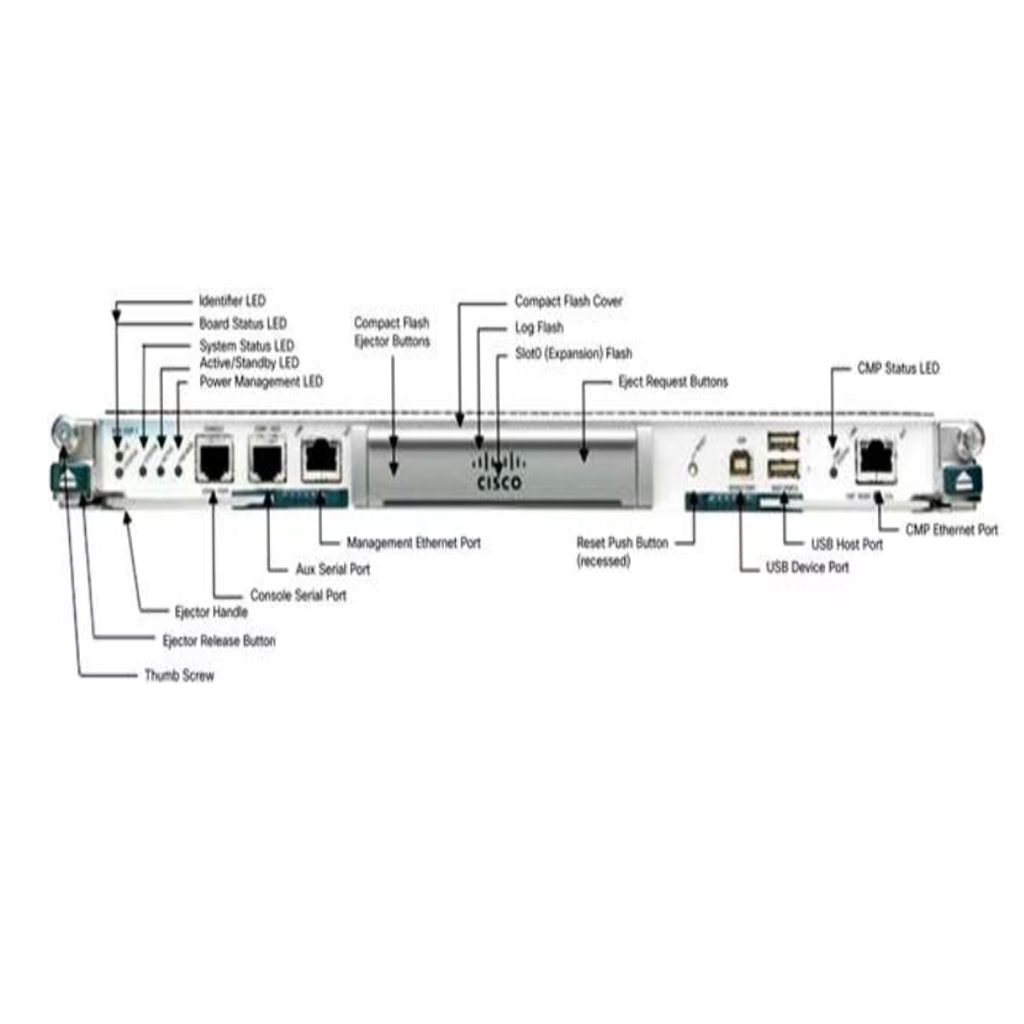

Interfaces |
● Supervisor management port: 10/100/1000-Mbps Ethernet port, support for inline encryption through MAC security (IEEE 802.1AE)
● CMP management port: 10/100/1000-Mbps Ethernet port
● Console serial port: RJ45 connector
● Auxiliary serial port: RJ45 connector
● 3 USB ports: 2 host and 1 device port for peripheral devices
|
|
Memory |
● DRAM: 4 GB
● Flash memory: 2 GB
● NVRAM: 2 Mb battery backup
|
|
Options |
● Removable storage; 2 external type II compact flash memory slots:
◦ Log (8 GB)
◦ Expansion (2 GB)
|
|
Reliability and availability |
|
|
MIBs |
Simple Network Management Protocol (SNMP) Versions 3, 2c and 1 supported; see Cisco NX-OS Software release notes for details of specific MIB support |
|
Network management |
● Cisco Data Center Network Manager (DCNM) 4.0
● Cisco VFrame Data Center 1.2
|
|
Programming interfaces |
● Extensible Markup Language (XML)
● Scriptable command-line interface (CLI)
● Cisco DCNM 4.0 Web Services
|
|
Physical specifications |
● Occupies one supervisor slot in a Cisco Nexus 7000 Series chassis
● Dimensions (H x W x D): 1.2 x 15.3 x 21.9 in. (3.0 x 38.9 x 55.6 cm)
● Weight: 10 lb (4.5 kg)
|
|
Environmental conditions |
● Operating temperature: 32 to 104°F (0 to 40°C)
● Operational relative humidity: 5 to 90%, noncondensing
● Storage temperature: -40 to 158°F (-40 to 70°C)
● Storage relative humidity: 5 to 95%, noncondensing
|
|
Regulatory compliance |
● EMC compliance
● FCC Part 15 (CFR 47) (USA) Class A
|
|
Environmental standards |
●
|
|
Safety |
● UL/CSA/IEC/EN 60950-1
● AS/NZS 60950
|
|
Warranty |
● Cisco Nexus 7000 Series Switches come with the standard Cisco 1-Year Limited Hardware Warranty
|
Software Requirements
The Cisco Nexus 7000 Supervisor Module is supported in Cisco NX-OS Software. The minimum software version is Cisco NX-OS Software Release 4.0 or later.
Ordering Information
To place an order, visit the Cisco Ordering homepage. To download software, visit the Cisco Software Center. Table 3 provides ordering information.
Table 3. Ordering Information
|
Product Name |
Part Number |
|
Cisco Nexus 7000 Supervisor Module, Includes External 8Gb flash Cisco Nexus 7000 Supervisor Module, Includes External 8Gb flash Spare |
N7K-SUP1 N7K-SUP1= |
|
Cisco Nexus 7000 - Compact Flash Memory - 2 GB (Expansion Flash) Cisco Nexus 7000 - Compact Flash Memory - 2 GB (Expansion Flash) Spare |
N7K-CPF-2GB N7K-CPF-2GB= |
|
Cisco Nexus 7000 - Compact Flash Memory - 8 GB (Log Flash) Spare |
N7K-CPF-8GB= |
